MAX crankcase

Kart eingines
Rotax spare parts

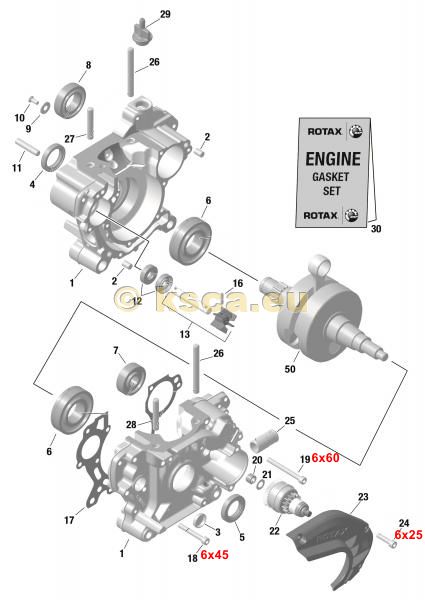

MAX crankcase

Ref

Product

Unit price

Crank case assy. black

€700.84*

Stk

Pin 8x12 DIN 5402

€1.81*

Stk

Cover 20 DIN 443

€0.80*

Stk

OIL SEAL AS 28X38X7 NBR clutch site

€9.58*

Stk

shaft seal 28x38x7mm Replica

€4.56*

Stk

shaft seal 25x38x7mm BASL

€4.44*

Stk

oil seal 25x38x7mm NBR

€9.58*

Stk

Ball bearing 6206 TVH C4 M 30x62x16mm

€22.99*

Stk

BALL BEARING 6302 TN9C3/15-42-13

€16.03*

Stk

BALL BEARING 6005 E C3/ 25-47-12

€19.67*

Stk

Thrust washer

€3.98*

Stk

Countersunk screw M5x12

€0.17*

Stk

locating pin small M6x40

€2.93*

Stk

shaft seal 10x26x7mm NBR

€5.95*

Stk

oil seal 10x26x7mm BA

€3.96*

Stk

WATERPUMP SHAFT ASSY

€24.80*

Stk

dowel 4x16

€2.72*

Stk

crank gasket MAX

€5.80*

Stk

NEEDLE BUSHING 8X12X8

€7.26*

Stk

thrust washer 8,5/15/0,5

€0.96*

Stk

starter reduction gear assy.

€139.46*

Stk

chain protection

€36.80*

Stk

tube

€5.29*

Stk

stud M8x57/20 tightening torque 5 NM

€2.99*

Stk

stud M8x28/20 with hole tightening torque 5 NM

€2.76*

Stk

air vent screw M18x1,5

€2.87*

Stk

engine gasket set assy. MAX

€52.24*

Stk

crankshaft assy. MAX

€534.46*

Stk

tube

Prod. no.: 10146

tube Water connection radiator

€5.29*

Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.

Stk

CHC Screw galvanised M6 8.8

Prod. no.: 10737

From €0.41*

dowel 4x16

Prod. no.: 10137

dowel 4x16

€2.72*

Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.

Stk

engine gasket set assy. MAX

Prod. no.: 10151

engine gasket set assy. MAX

€52.24*

Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.

Stk

Cover 20 DIN 443

Prod. no.: 10126

Cover 20 DIN 443

€0.80*

Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.

Stk

stud M8x28/20 with hole tightening torque 5 NM

Prod. no.: 10148

stud M8x28/20 with hole tightening torque 5 NM

€2.76*

Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.

Stk

Crank case assy. black

Prod. no.: 10124

Crank case assy. black

€700.84*

Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.

Stk

NEEDLE BUSHING 8X12X8

Prod. no.: 10141

NEEDLE BUSHING 8X12X8

€7.26*

Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.

Stk

oil seal 10x26x7mm BA

Prod. no.: 14158

oil seal 10x26x7mm BA

€3.96*

Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.

Stk

Ball bearing 6206 TVH C4 M 30x62x16mm

Prod. no.: 10129

Ball bearing 6206 TVH C4 M 30x62x16mm Solid Brass Cage (M), solid window cage made of polyamide (TV), type snap cage (H)

€22.99*

Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.

Stk

shaft seal 28x38x7mm Replica

Prod. no.: 14130

shaft seal 28x38x7mm Replica

€4.56*

Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.

Stk

Pin 8x12 DIN 5402

Prod. no.: 10125

Pin 8x12 DIN 5402

€1.81*

Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.

Stk

shaft seal 10x26x7mm NBR

Prod. no.: 10135

shaft seal 10x26x7mm NBR

€5.95*

Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.

Stk

air vent screw M18x1,5

Prod. no.: 10150

air vent screw M18x1,5

€2.87*

Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.

Stk

Countersunk screw M5x12

Prod. no.: 10133

Countersunk screw M5x12 TIGHTENING TORQUE 6 nm

€0.17*

Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.

Stk

starter reduction gear assy.

Prod. no.: 10143

starter reduction gear assy.

€139.46*

Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.

Stk

crankshaft assy. MAX

Prod. no.: 12619

crankshaft assy. MAX

€534.46*

Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.

Stk

crank gasket MAX

Prod. no.: 10138

crank gasket MAX

€5.80*

Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.

Stk

shaft seal 25x38x7mm BASL

Prod. no.: 14157

shaft seal 25x38x7mm BASL

€4.44*

Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.

Stk

BALL BEARING 6005 E C3/ 25-47-12

Prod. no.: 10131

BALL BEARING 6005 E C3/ 25-47-12 Cage made of polyetheretherketone (PEEK), suitable for special requirements.

€19.67*

Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.

Stk

stud M8x57/20 tightening torque 5 NM

Prod. no.: 10147

stud M8x57/20 tightening torque 5 NM

€2.99*

Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.

Stk

OIL SEAL AS 28X38X7 NBR clutch site

Prod. no.: 10127

OIL SEAL AS 28X38X7 NBR clutch site

€9.58*

Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.

Stk

WATERPUMP SHAFT ASSY

Prod. no.: 10136

WATERPUMP SHAFT ASSY

€24.80*

Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.

Stk

BALL BEARING 6302 TN9C3/15-42-13

Prod. no.: 10130

BALL BEARING 6302 TN9C3/15-42-13 Snap cage of polyamide, ball-bearing. Cost-effective, therefore often standard cage. See also TV

€16.03*

Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.

Stk
